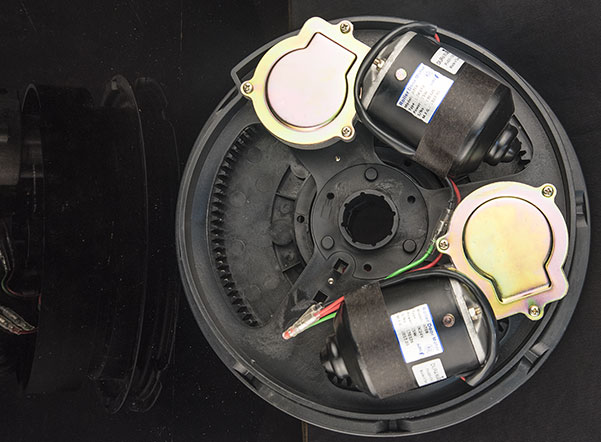

Duramatic

The perfect companion for all our roller door, Duramatic motors allow you to operate shutters with just the push of a button. They can be installed to fit any shutter size and go through stringent electrical and mechanical tests to guarantee safe and reliable operation.

FEATURES

SAFE

1. Auto Reversing Feature: During closing operation, the door will stop immediately and reverse when an obstruction is detected by the motor. 2. Motor safety cut-off switch is automatically triggered when the motor detects continuous abnormal or malfuctioning operation.

DURABLE

1. All motors go through stringent mechanical and electrical tests before leaving the factory. 2. Counter balance spring is incorporated into the shaft assembly to reduce motor fatigue. 3. Control panels and motors are independent. Both components are therefore not required to be replaced at the same time when either of them has a breakdown.

RELIABLE

1. The motor is designed and built to meet ISO 9002 specification. Concerns for overheating are eliminated by fuse & circuit protection. 2. All Duramatic motors come with One Year Warranty.

ADAPTABLE

1. The motor operations can be controlled using a push button or a remote as desired by the customer. 2. Dual operation mode (motorized or manual): During power failure or in the event of emergency, the door can be operated in manual mode or by using the chain hoist option. 3. Ready to install in any shutter size meeting all requirements of the consumer.

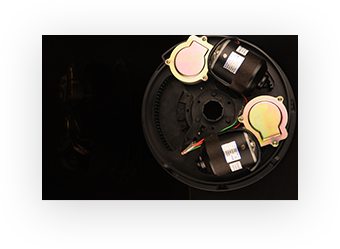

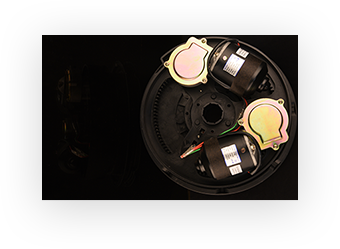

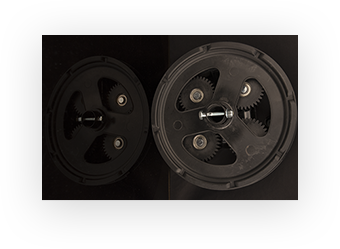

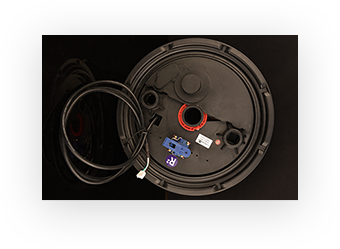

ROLLER DOOR MOTORS

(RD SERIES)

Series No.	RD 190	RD 280	RD 370	RD 460
Name	Single Motor	Dual Motor	Heavy Duty Motor	Super Heavy Duty Motor
Door Size	Upto 10 sq.m	10 - 20 sq.m	20 - 30 sq.m	Above 30 sq.m
Door Speed	15-20cm per sec	15 - 20cm per sec	15 - 20cm per sec	15 - 20cm per sec
Wattage	75W	150W (75 x 2)	200W (100 x 2)	200W (100 x 2)
Input Voltage	DC 24 V	DC 24 V	DC 24 V	DC 24 V
OD	280 mm	280 mm	280 mm	280 mm
Pipe Size	34 mm	34 mm	34 mm	34 mm
Control Panels	5A - 10A	5A - 10A	5A - 10A	5A - 10A
RPM	10 to 11	10 to 11	10 to 11	10 to 11

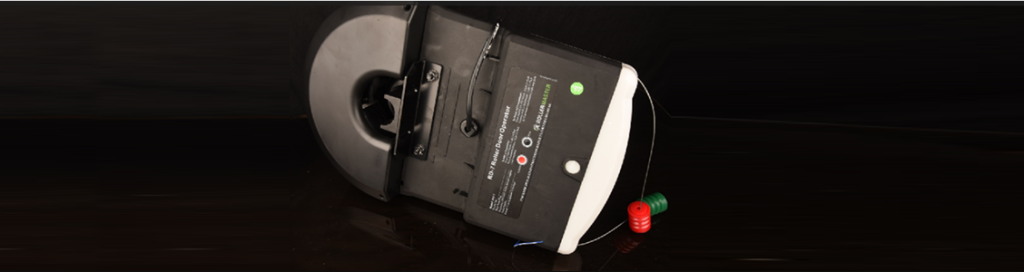

RD 73: The RD 73 Retro Fit Motor is custom-made to fit any existing roller door up to 20 sq.m.

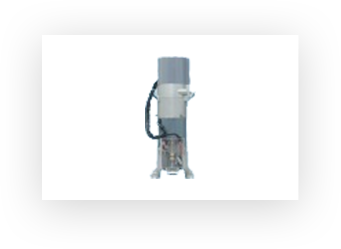

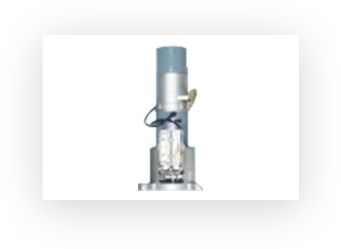

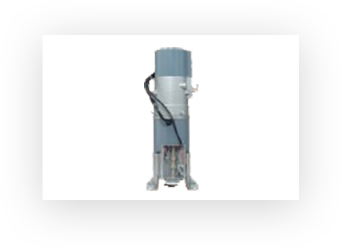

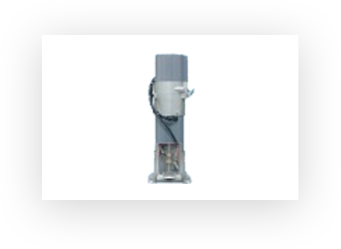

INDUSTRIAL DOOR MOTORS

(IS SERIES)

A marriage between sophisticated controls and immense power, our industrial door motors are designed to operate heavy-duty door with ease, allowing a safe and secure environment for your facility.

	IS 370	IS 550	IS 640	IS 820
Distinction	300 Kg	500 Kg	600 Kg	800 Kg
Relay	No	No	Yes	No
Magnetic Switch	Yes	Yes	Yes	Yes
Phase Available	Single / Three	Single / Three	Single / Three	Single / Three
Brake System	Dual	Dual	Single	Dual
Power (HP)	1/4	1/2	1/2	3/4
Motor Speed (r.p.m.)	1780	1780	1780	1150
Rating Time (min)	10	10	8	12
Temperature Protector	105	105	115	135

Choose Dura Ultima

First Choice in Quality. Final World in Durability

Designed and manufactured for strength and durability, Roller Door is our flagship product suited for any type of Industrial, Residential and Commercial applications. The unique spring-assisted spindle assembly will provide a Roller Door that is always easy to open and close giving reliable performance at all times
